Belt conveyer

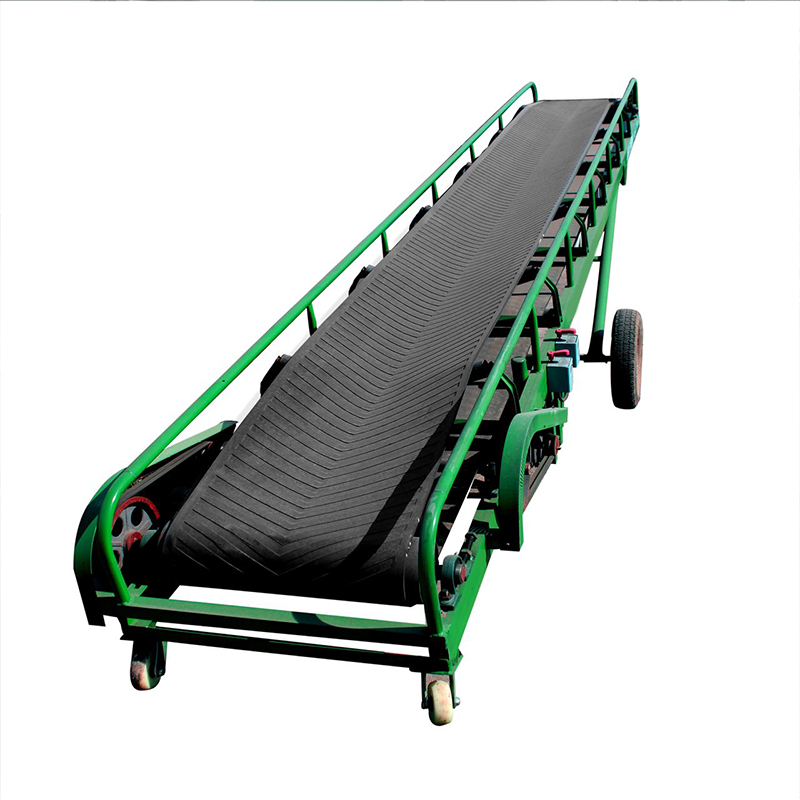

Product Introduction: Material Hopper Belt Conveyor and Large Angle Inclined Belt Conveyor Machine
Efficient and Versatile Material Handling Solutions for Your Industrial Needs
In industries where bulk material handling is critical, having the right equipment can make all the difference. Our Material Hopper Belt Conveyor and Large Angle Inclined Belt Conveyor Machine are designed to meet the demands of modern industrial operations, offering efficient, reliable, and versatile solutions for transporting materials. Whether you're working in mining, construction, agriculture, or manufacturing, these conveyors are engineered to deliver exceptional performance in even the most challenging environments.
Seamless Material Loading and Transfer
The Material Hopper Belt Conveyor is designed to streamline the process of loading and transferring bulk materials. Equipped with a hopper, this conveyor ensures a steady and controlled flow of materials onto the belt, making it ideal for applications where precise material handling is required.
Key Features:
Integrated Hopper Design:
The built-in hopper allows for easy loading of bulk materials, ensuring a consistent and controlled feed onto the conveyor belt.
High Efficiency:
Engineered for smooth and continuous operation, this conveyor maximizes productivity by transporting materials quickly and reliably.
Durable Construction:
Built with high-quality materials, the conveyor is designed to withstand harsh industrial conditions, ensuring long-lasting performance and minimal maintenance.
Customizable Options:
Available in various lengths, widths, and configurations, the conveyor can be tailored to meet your specific material handling needs.
Easy Installation and Maintenance:
Designed for quick and hassle-free installation, the conveyor minimizes setup time and costs. Its user-friendly design ensures that maintenance tasks can be performed efficiently.
Versatile Application:
Suitable for a wide range of industries, including mining, construction, agriculture, and manufacturing. It can handle materials such as grains, sand, gravel, and more.
Features
1. Belt conveyor is advanced and simple in structure, easy to maintain
2. Its transfer capacity is high, transfer distance is long.
3. Widely used in mining, metallurgical and coal industry to transfer sandy or lump material, or packaged material.
4. In many situation, it is a very important component of nonstandard machinery.
Working principle:
A material transfer process is formed between the initial feed point and the final discharge point on a certain conveying line.It can not only carry out the transportation of scattered materials, but also carry out the transportation of finished goods.In addition to pure material transportation, it can also cooperate with the requirements of the technological process in the production process of various industrial enterprises to form a rhythmical flow operation transportation line.
Product application
We have various types of hopper belt conveyor, such as 400, 500, 650, 800, 1000, 1200 etc.It is widely used in such industries as mine, metallurgy and coal to convey loose materials and finished products.
Technical parameter
Belt width(mm) | Length (m) / Power (KW) | Conveying Speed (m/s) | Capacity (t/h) | ||
400 | ≤12/2.2 | 12-20/2.2-4 | 20-25/4-7.5 | 1-2.0 | 30-60 |
500 | ≤12/3 | 12-20/3-5.5 | 20-30/5.5-7.5 | 1-2.0 | 40-80 |
600 | ≤12/4 | 12-20/4-5.5 | 20-30/5.5-11 | 1-2.0 | 80-120 |
800 | ≤10/4 | 10-15/4-5.5 | 15-30/5.5-15 | 1-2.0 | 120-200 |
1000 | ≤10/5.5 | 10-20/5.5-11 | 20-40/11-22 | 1-2.0 | 200-320 |
1200 | ≤10/7.5 | 10-20/7.7-15 | 20-40/15-30 | 1-2.0 | 300-480 |

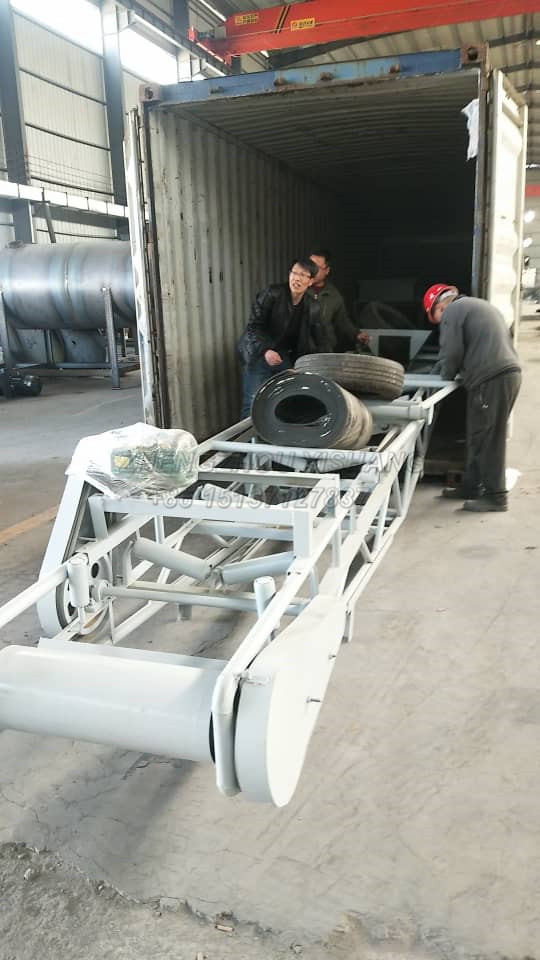

1.USE CRANE TO LOAD INTO THE CONTAINER
2.PLASTIC FILM AS A RAIN-PROOF
3.CORK WOOD TO FORBID IMPACT
4.WIRE CABLE INSIDE THE CONTAINER
5.WIRE CABLE FASTENED
