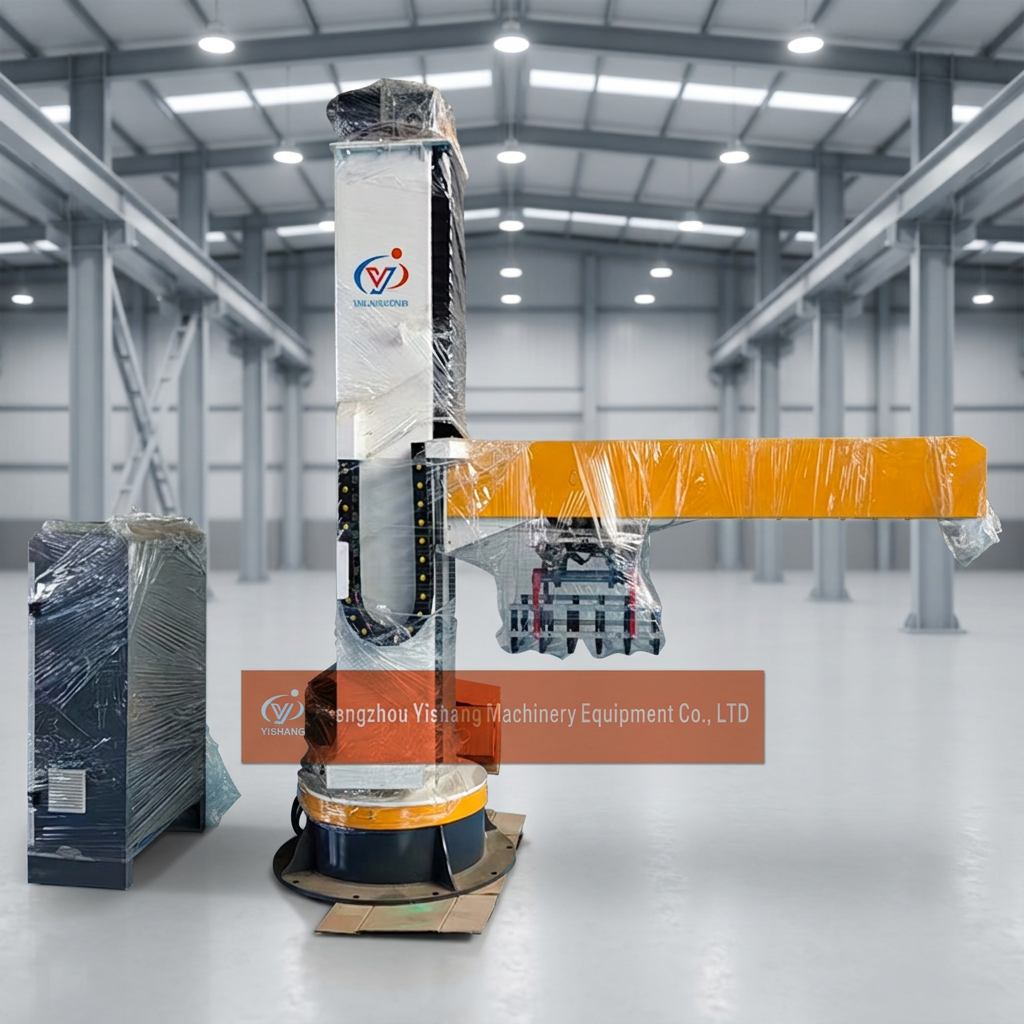

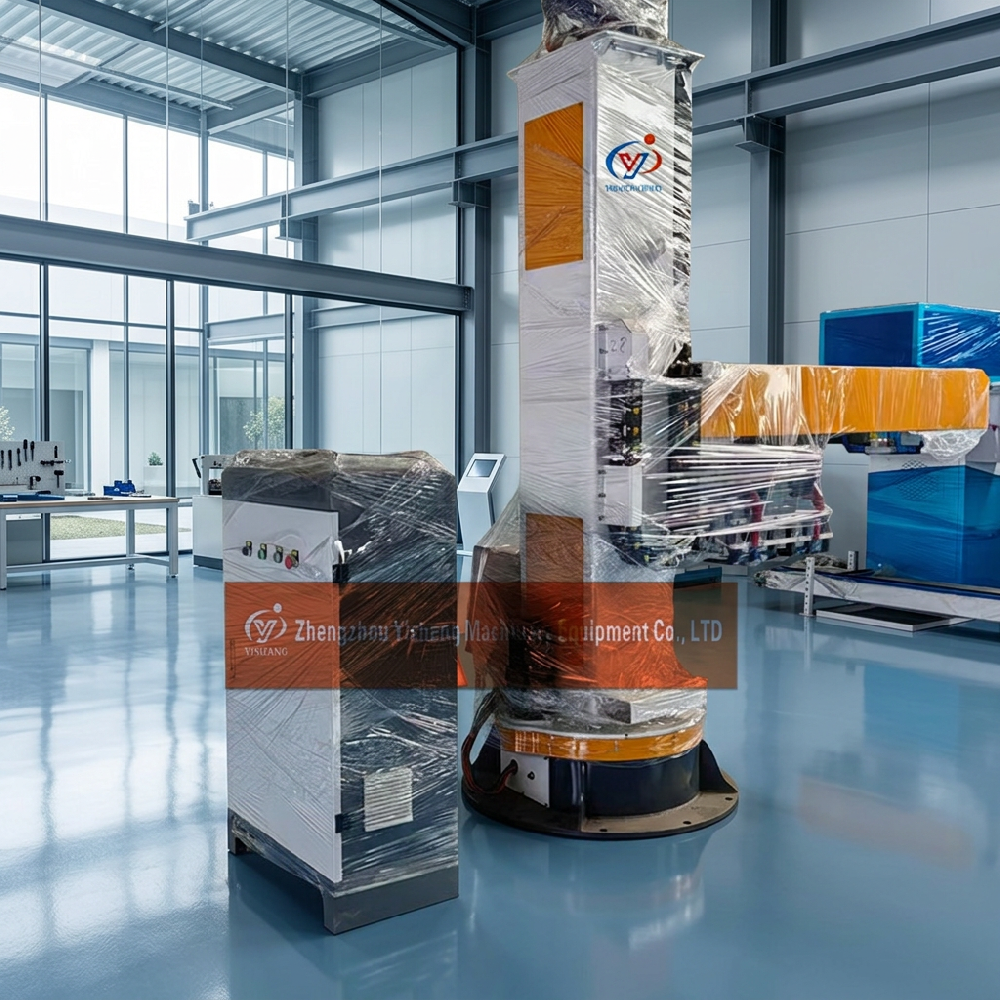

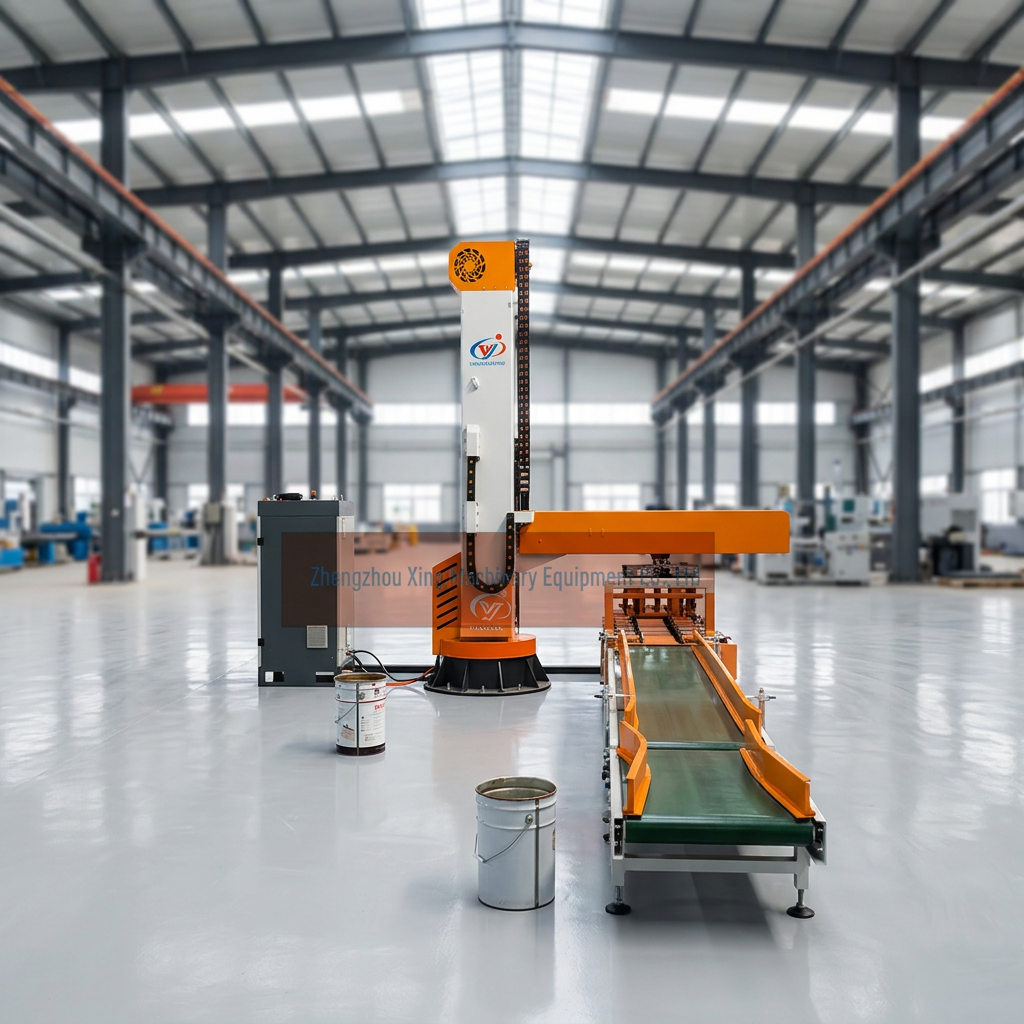

Product Overview

Our Automatic Column Palletizing Machine is engineered specifically for the demanding end-of-line requirements of dry mortar cement plants. Designed with a robust fork gripper system and full servo drive, this palletizing machine efficiently handles 25kg and 50kg bags, delivering precise, stable stacking that eliminates manual labor and optimizes warehouse operations .

1.Intelligent PLC Control with Touchscreen Operation

The machine features a user-friendly PLC control system with touchscreen HMI, enabling operators to select from pre-programmed stacking patterns or create custom configurations on the fly. The servo-driven system automatically adjusts to different bag sizes and stacking requirements, allowing quick changeovers without mechanical tooling adjustments. With recipe storage capacity, switching between 25kg and 50kg bag specifications is seamless and efficient.

2.High-Performance Fork Gripper Design

The fork gripper mechanism ensures secure bag handling throughout the palletizing process. The gripper gently picks bags from the conveyor, rotates them into the required position, and precisely places them on the pallet. This gentle handling preserves bag integrity, preventing damage to seals and maintaining product quality. The gripper system can be customized with single or double claw configurations to match specific production needs .

3.Superior Stacking Precision and Stability

The column palletizer utilizes a four-axis servo control system that achieves linear interpolation between points, ensuring smooth, precise movements . The system creates interlocked, column-straight stacks that remain stable during warehouse storage and transportation. Proper palletizing patterns prevent bag shifting and toppling, reducing product damage and ensuring customer satisfaction upon delivery .

4.High-Speed Operation for Maximum Throughput

With a palletizing speed of 300 to 600 cycles per hour and a maximum payload capacity of up to 120kg, this machine significantly increases production line efficiency . For a dry mortar plant producing large volumes of bagged products, this automation represents a 50% increase in throughput compared to manual or semi-automatic lines, enabling additional sales without additional mixing equipment .

5.Compact Footprint with Flexible Layout

The single-column design occupies minimal floor space while offering a maximum stacking height of 1800mm . This compact configuration integrates seamlessly into existing production lines, making it ideal for both new installations and plant upgrades. The machine's rotating column and horizontal arm provide a 290-degree rotation function, allowing application to simultaneous palletizing of multiple stations .

Key Advantages

• PLC touchscreen control with multiple recipe storage

• Fork gripper for secure, damage-free bag handling

• 300-600 cycles per hour palletizing speed

• 120kg maximum payload capacity

• 1800mm maximum stacking height

• Single or double claw configuration options

• 4-axis servo drive for smooth, precise movement

• 290-degree rotation for flexible station placement

• Low maintenance with simple mechanical structure

• Integrated safety devices compliant with current standards

Applications

This palletizing machine is ideal fordry mortar cement plants, special mortar factories, putty powder lines, gypsum mortar production, and other packaging bag palletizing operations in the construction materials industry .

Why Choose Zhengzhou Yishang?

Zhengzhou Yishang Machinery Equipment Co., Ltd. brings over 14 years of industry expertise to every palletizing solution. Our automatic column palletizing machine is the reliable, high-performance choice to maximize the return on your dry mortar cement plant investment . We provide comprehensive after-sales support, including installation guidance, personnel training, and maintenance service
