Complete Manufacturing Solution for High-Quality Tile Adhesives and Dry Mix Mortars

The global construction industry continues to demand high-performance ceramic tile adhesives that ensure secure, long-lasting tile installations for residential bathrooms, commercial flooring, and large-scale infrastructure projects. The quality of tile adhesive directly impacts construction durability, safety, and customer satisfaction.

Zhengzhou Yishang Machinery introduces its advanced Dry Mix Mortar Batching Plant — a complete Ceramic Tile Adhesive Plant specifically engineered for manufacturing premium tile adhesives, grouts, and related dry mix mortars. This fully automated production line integrates intelligent batching, high-efficiency mixing, automatic packaging, and dust collection into a seamless manufacturing solution.

With capacities ranging from 5 to 55 tons per hour, our Dry Tile Adhesive Mixing Machine enables manufacturers to produce consistent, high-quality products that meet international standards including EN 12004, ANSI A118.4, and ISO 13007. The equipment is built for durability with wear-resistant components designed for 24/7 industrial operation, making it the ideal choice for construction material suppliers worldwide.

Why Choose Yishang Ceramic Tile Adhesive Plant?

1. Optimized for Tile Adhesive Formulations

Ceramic tile adhesives require specific formulation characteristics — precise ratios of cement, graded sand, redispersible polymer powder (RDP), cellulose ether (HPMC), and other additives. Our Ceramic Tile Adhesive Plant is specifically configured to meet these demanding requirements:

2. Complete Production Workflow

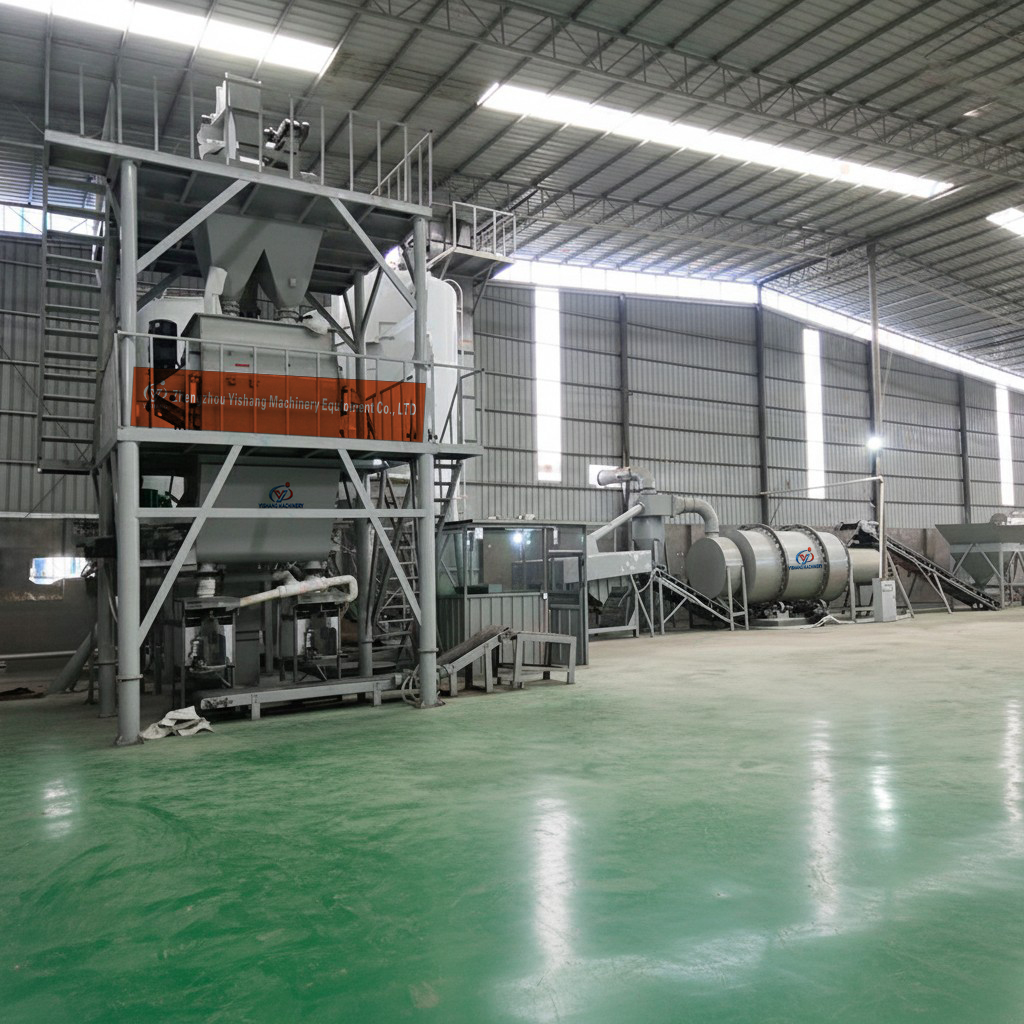

Our Dry Mix Mortar Production Line integrates a fully automated process from raw material to finished product:

Step 1: Raw Material Storage

• Cement silos with moisture-proof design

• Sand storage bins

• Additive hoppers for RDP, HPMC, pigments

• Automatic feeding systems with level sensors

Step 2: Automatic Batching

• PLC-controlled weighing system with ±1% accuracy for aggregates

• Micro-dosing for additives with ±0.5% accuracy

• Recipe storage for multiple formulations (C1, C2, white adhesive)

Step 3: High-Efficiency Mixing

• Dual-shaft paddle mixer for rapid, uniform blending

• 90-120 second mixing cycle

• No dead corners, complete material circulation

• Pneumatic discharge for minimal residue

Step 4: Automatic Packaging

• Valve bag packer with ±0.2kg accuracy

• 10-50kg/bag adjustable

• Automatic bag sewing and date printing

Step 5: Dust Collection

• Pulse jet dust collectors at all dust points

• Clean working environment meeting international standards

3. Advanced Dry Tile Adhesive Mixing Machine Technology

The core of our Dry Tile Adhesive Mixing Machine is the dual-shaft paddle mixer, featuring:

• No dead corners – Special paddle design ensures all material circulates and mixes completely

• High mixing homogeneity – Up to 99.9% uniformity, critical for consistent adhesive performance

• Efficient cycle time – 90-120 seconds per batch

• Wear-resistant construction – Durable alloy paddles for extended service life

• Pneumatic discharge – Clean, complete discharge with minimal residual waste

• Easy cleaning – Quick-access design for product changeovers

4. Precision Micro-Dosing for Additives

Specialized additives are critical for tile adhesive performance. Our line includes:

• Micro-feeding systems with high-precision load cells

• Clog-prevention screw design for smooth flow of fine powders

• Separate additive scale for accurate measurement of RDP, HPMC, starch ether

• Automatic compensation for material density variations

5. Intelligent PLC Control System

The centralized PLC + HMI touchscreen system offers:

• One-button start/stop – Entire process runs automatically

• Multi-recipe storage – Quick changeover between different adhesive formulations

• Real-time production monitoring – Live data display for batching, mixing, packaging

• Automatic fault diagnostics – Instant alerts with troubleshooting guidance

• Production data logging – Complete records for quality control

• Remote access capability – Optional for smart factory integration

6. Durable Construction

Our Dry Mix Mortar Batching Plant is built for demanding production environments:

• Heavy-duty steel structure – Supports 24/7 continuous operation

• Wear-resistant liners – Extended service life

• Sealed bearings – Protection from dust ingress

• Modular design – Easy maintenance and component replacement



Technical Specifications

Maximum grain size: 4.75mm
Mixing uniformity: ≥99.9%
Weighing accuracy: ±1% (aggregates), ±0.5% (additives)
Packaging accuracy: ±0.2kg
Workers required: 2-4 persons per shift
Production cycle: 90-120 seconds per batch

Main Components

End Products This Machine Produces

Raw Materials Processed

Key Features Summary

Why Zhengzhou Yishang Machinery?

• Specialized Expertise – Years of experience in tile adhesive and dry mortar production equipment

• Turnkey Solutions – Complete plant design, equipment supply, installation, and training

• Formula Support – Basic formulations for C1, C2, and white tile adhesives

• Global Export Experience – CE-certified equipment serving customers worldwide

• Factory Direct – Competitive pricing with no middlemen

• After-Sales Service – Engineers available for overseas installation and commissioning

• One-Year Warranty – Comprehensive coverage on core components

Contact us for a customized quotation!

📞 Tel/WhatsApp/WeChat: +86 15137127837
🌐 Web: www.drymortarmachinery.com
✉ Email: [email protected]

Please inform us of your target capacity and product types (C1, C2, white adhesive, etc.). Our engineering team will design the optimal Dry Mix Mortar Batching Plant for your tile adhesive production needs.
