Top Quality Silica Sand Dryer for Mining Material Drying – Complete Production Solution

Dry More Sand. Use Less Fuel. Run 24/7.

Wet sand costs you money – in transport weight, in processing delays, and in rejected batches. This Sand Dryer is engineered for silica sand, river sand, quartz sand, and other mining materials, reducing moisture to below 0.5% with a discharge temperature under 65°C.

Capacity: 5 – 100 tons/hour | Fuel options: Gas, diesel, heavy oil, coal, biomass

Why This Sand Drying Machine?

Traditional dryers waste fuel and lose heat. This Sand Drying Machine uses a three-pass rotary drum design that recycles hot air internally, cutting fuel consumption by up to 25% compared to single-pass dryers. The result: lower operating cost per ton of dried sand.

The drum is lined with wear-resistant steel plates, extending service life even when processing abrasive silica sand. A variable frequency drive controls drum rotation speed, allowing you to fine-tune drying time for different moisture levels and particle sizes.

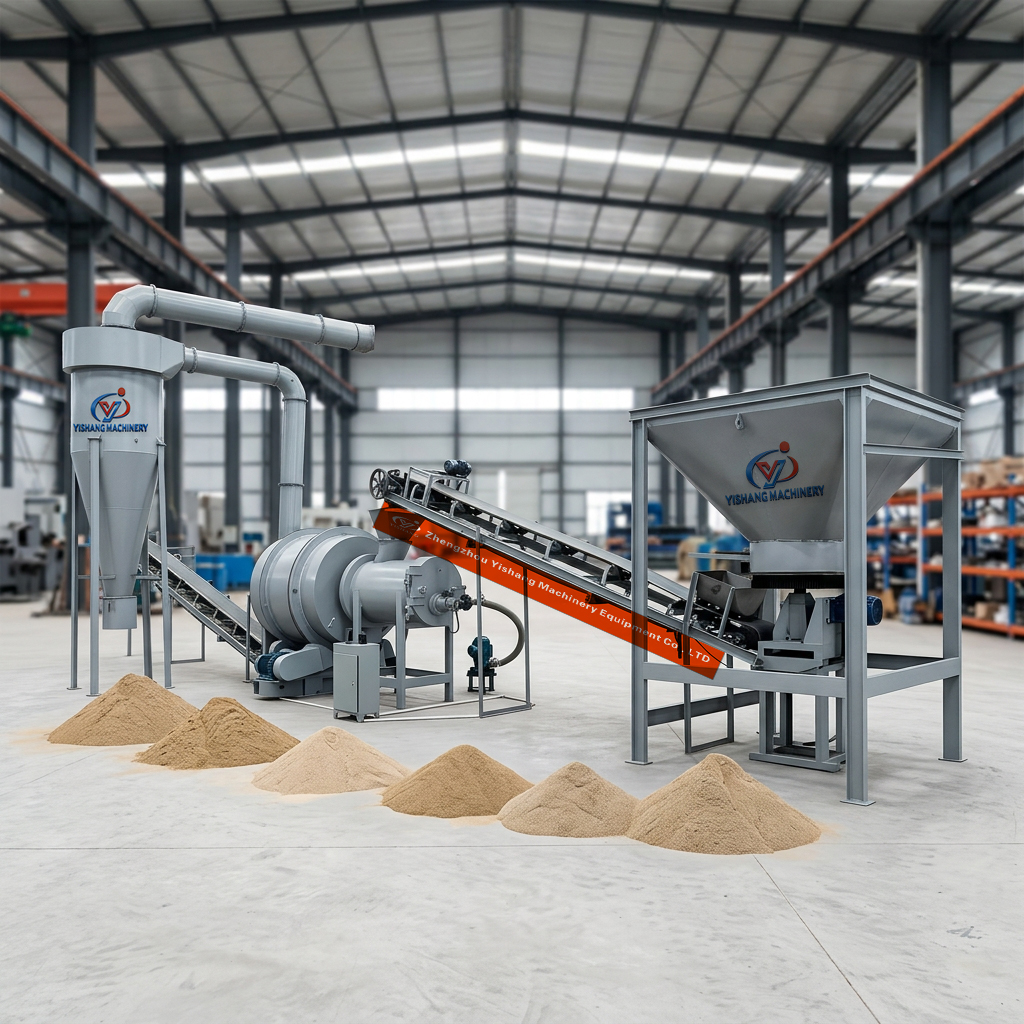

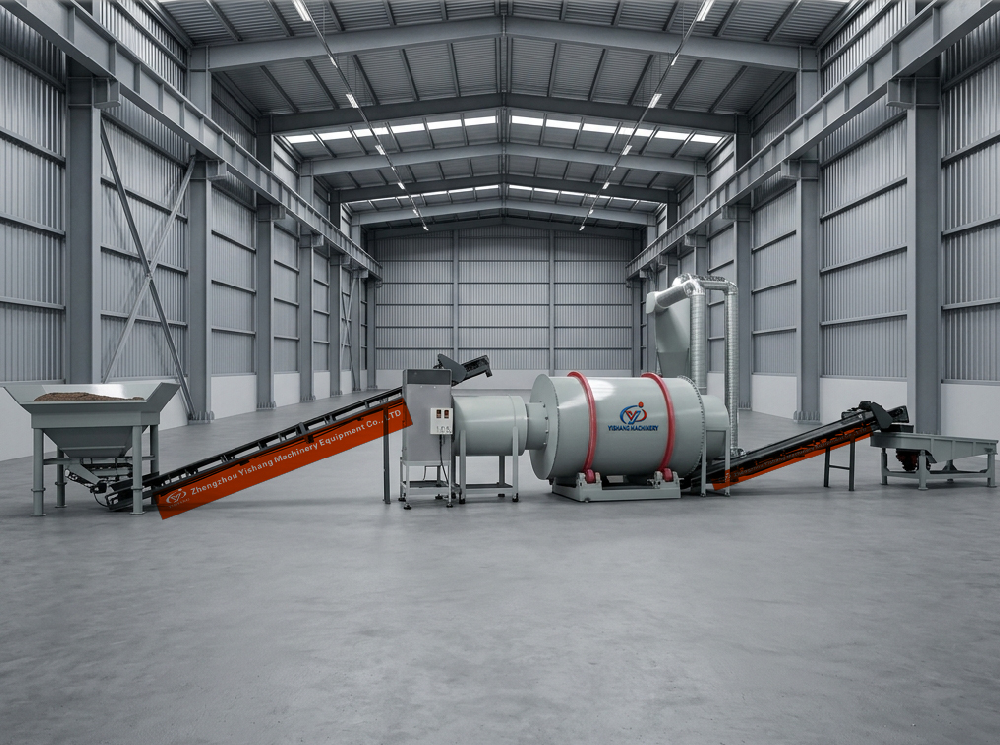

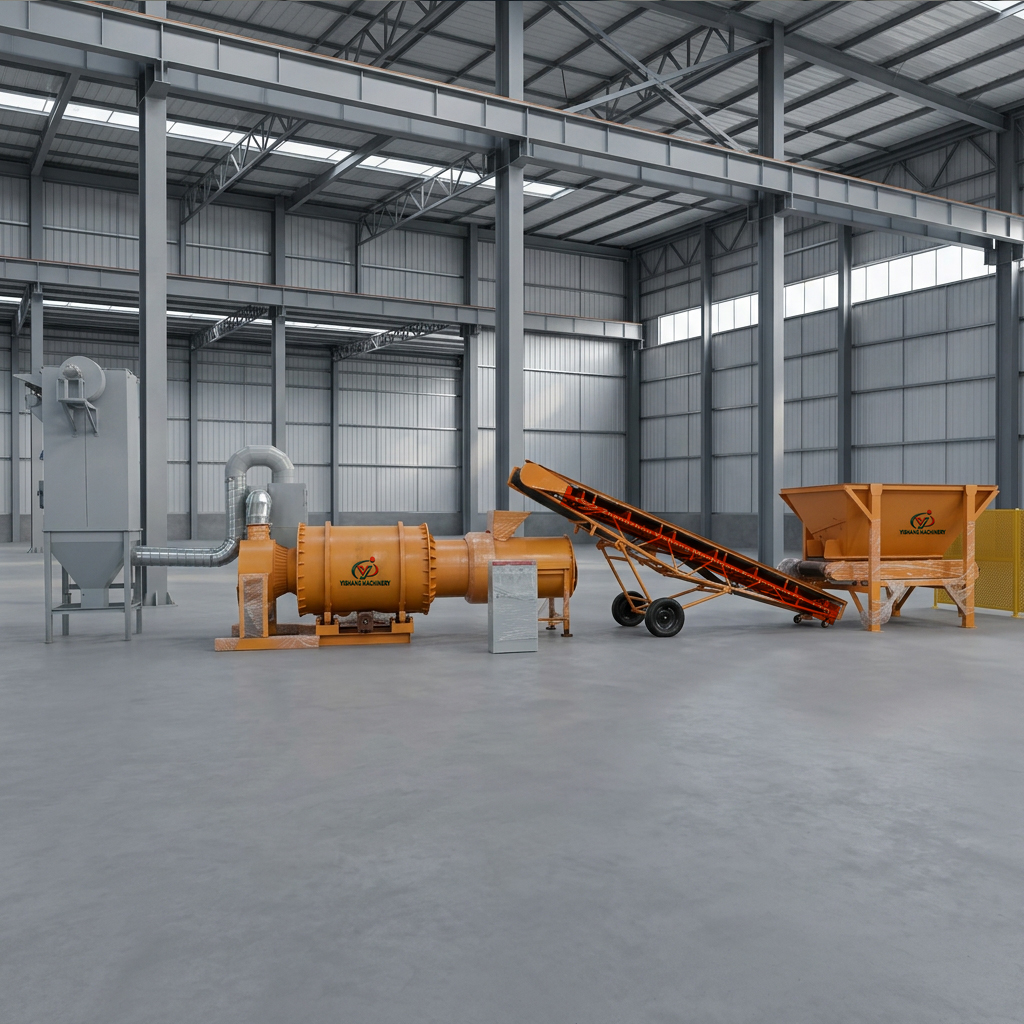

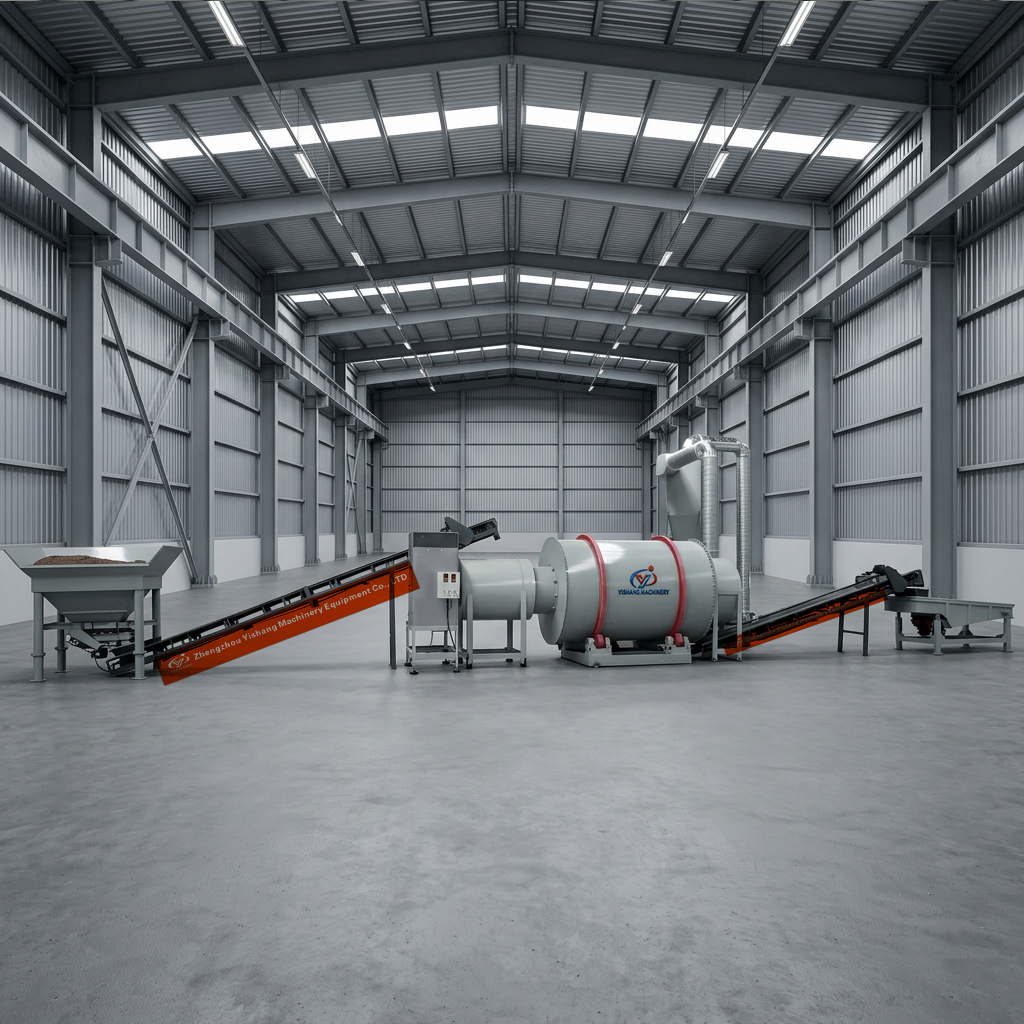

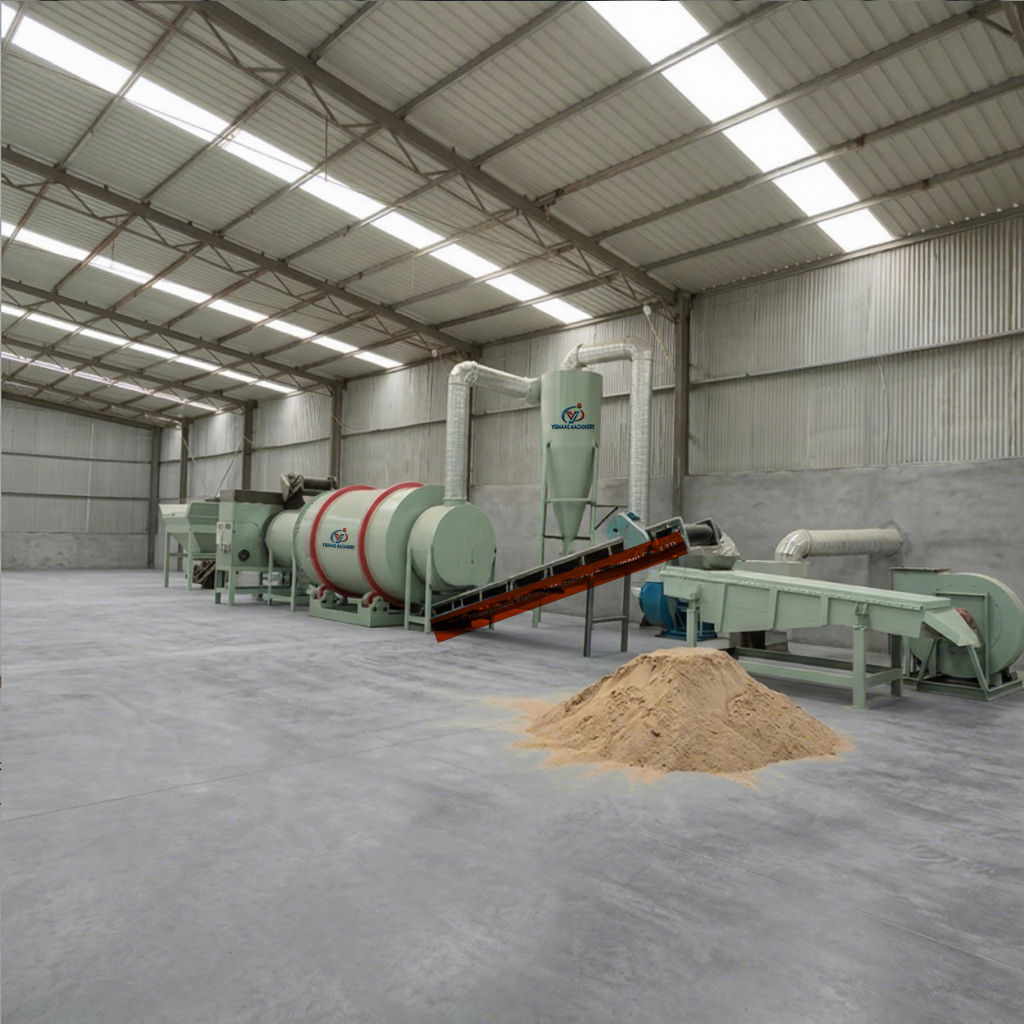

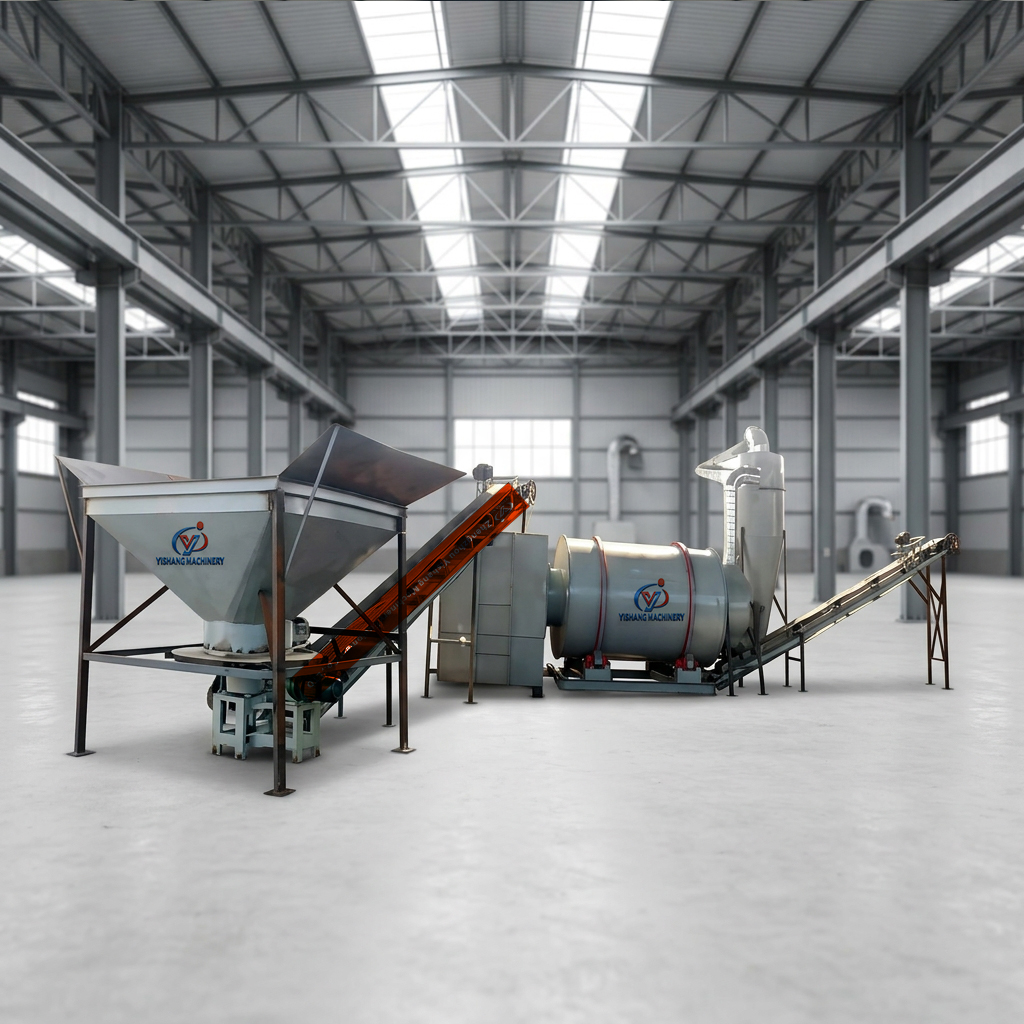

Complete Production Solution – Not Just a Dryer

A dryer alone does not solve your production problem. This complete solution includes:

• Feeding system – Belt or screw conveyor to feed wet sand evenly

• Rotary drum dryer – Three-pass design with internal lifting flights

• Combustion chamber – Efficient burner for gas, diesel, heavy oil, coal, or biomass

• Cyclone separator – Captures fine dust and returns it to the product stream

• Bag filter dust collector – Meets environmental emission standards

• Discharge conveyor – Transfers dried sand to storage or next process

• PLC control panel – Monitors temperature, rotation speed, and moisture

Every component is matched and pre-tested before shipment. You receive a system, not a collection of parts.

What You Can Dry

Silica sand, quartz sand, river sand, sea sand, foundry sand, frac sand, gypsum, limestone, kaolin, bentonite, slag, and other mining materials.

Final moisture content: below 0.5%. Output temperature: under 65°C. Suitable for direct feeding into dry mortar production lines, concrete batching plants, and glass manufacturing.

Key Features

• Three-pass drum design – Up to 25% fuel savings

• Wear-resistant liner – Extended service life with abrasive silica sand

• Variable frequency drive – Adjustable drum speed for different materials

• Multi-fuel burner – Gas, diesel, heavy oil, coal, or biomass

• Full dust collection – Cyclone + bag filter for clean emissions

• PLC control – Automatic temperature and speed monitoring

• Custom voltage – 220V, 380V, 415V, 460V, or your local grid

• Turnkey installation – Engineers available overseas

Technical Range

• Capacity: 5-100 tons/hour (multiple models available)

• Inlet moisture: Up to 15%

• Outlet moisture: Below 0.5%

• Discharge temperature: Under 65°C

• Fuel types: Natural gas, LPG, diesel, heavy oil, coal, biomass

• Drum length: 6-12 meters depending on capacity

Who Is This For?

• Sand washing plants that need to dry output before sale

• Dry mortar plants requiring dry sand for tile adhesive and putty production

• Glass manufacturers needing low-moisture silica sand

• Foundries and frac sand processors

• Mining operations drying mineral concentrates

Why Yishang?

Yishang Machinery has supplied Sand Dryer and Sand Drying Machine systems to customers in Southeast Asia, Africa, the Middle East, and South America. Our dryers operate alongside our dry mortar production lines, giving us practical knowledge of how dried sand performs in downstream processes. We understand both the drying side and the production side.

Every dryer is factory-tested before shipment. Installation and commissioning support is available. Spare parts are stocked for fast delivery.

📞 Tel/WhatsApp/WeChat: +86 15137127837
🌐 Web: www.drymortarmachinery.com
✉ Email: [email protected]

Tell us your material, inlet moisture, and target output. We'll recommend the right Sand Dryer for your operation.
