Thermoplastic road marking paint production line

Industrial Fully Automatic Thermoplastic Road Marking Paint Making Machine Production Line for Reflective White and Yellow Marking

Make High-Retroreflectivity Road Paint. Automatically.

Nighttime road safety starts with reflective markings. This Thermoplastic Road Marking Paint Making Machine produces white (luminance ≥75) and yellow (≥45) paint that meets BS EN 1436 and AASHTO M249 standards.

Capacity: 8 – 60 tons/hour | Annual output: 20,000 – 150,000+ tons

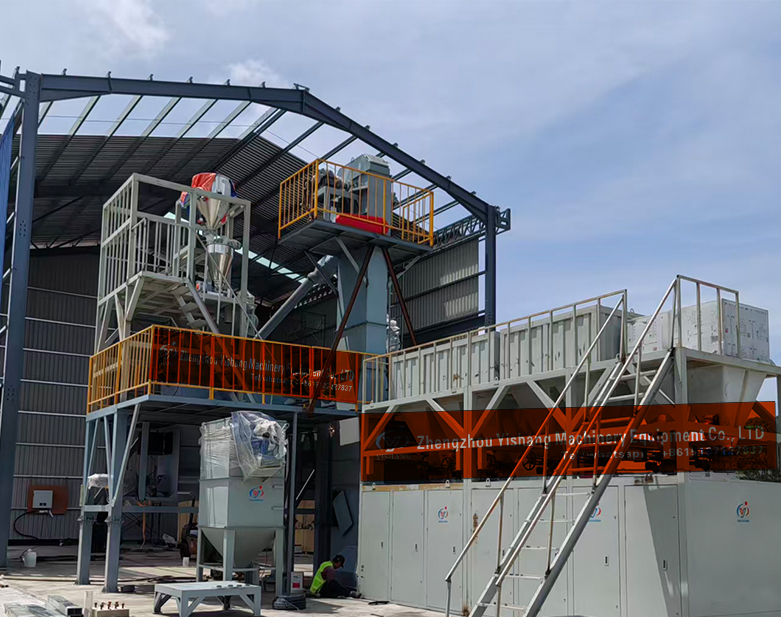

Thermoplastic Road Marking Paint Making Machine.png

What This Production Line Does

Step	Process
1	Store raw materials (resin, TiO₂, chrome yellow, glass beads, CaCO₃)
2	Automatic batching (±0.5% accuracy)
3	High-speed heating mixing (up to 220°C)
4	Cooling & solidification
5	Two-stage crushing to 0-4mm powder
6	Twin-auto packing (30-40 bags/min, ±0.2kg)

From raw material to stacked bags – fully automatic.

Key Features

Feature	Benefit
PLC + HMI touchscreen	One operator runs the whole line
±0.5% weighing accuracy	Consistent white (≥75) & yellow (≥45) luminance
Twin-auto packer	30-40 bags/minute – no bottleneck
Two-stage crushing	Precise 0-4mm particle size
Pulse dust collector	Clean, environmentally compliant

Why Reflective? Glass Bead Dosing System

Reflective road markings save lives at night. Our line includes a precision glass bead feeding system (18-30% content) that ensures uniform distribution for maximum retroreflectivity.

Technical Snapshot

Model	Capacity (t/h)	Mixer Power (kW)	Packing Speed (bags/min)	Workshop Area	Operators
YS-TP-FA-15	8-15	45-75	30-40	400-600 m²	2-3
YS-TP-FA-30	15-30	75-90	30-40	600-900 m²	2-3
YS-TP-FA-50	30-50	90-132	30-40	800-1200 m²	3-4

Particle size: 0-4mm | Heating temperature: 150-220°C | Packing accuracy: ±0.2kg

Complete Turnkey Package

📐 Free plant layout design
🏭 All equipment (silos, mixer, crusher, packer, dust collector, PLC)
🔧 On-site installation & commissioning
👨‍🏫 Operator training
📋 White & yellow paint formulas (BS EN 1436 compliant)
🛠️ Spare parts kit
📞 Lifetime remote support
✅ 1-year warranty

Why Yishang?

Reason	Fact
Experience	10+ years in paint equipment
Standards	BS EN 1436, AASHTO M249
Global	Exported to 30+ countries
Price	Factory direct
Support	Engineers overseas

📞 Tel/WhatsApp/WeChat: +86 15137127837
🌐 Web: www.drymortarmachinery.com
✉ Email: [email protected]

Tell us your target capacity. We'll design your Thermoplastic Road Marking Paint Production Line.
