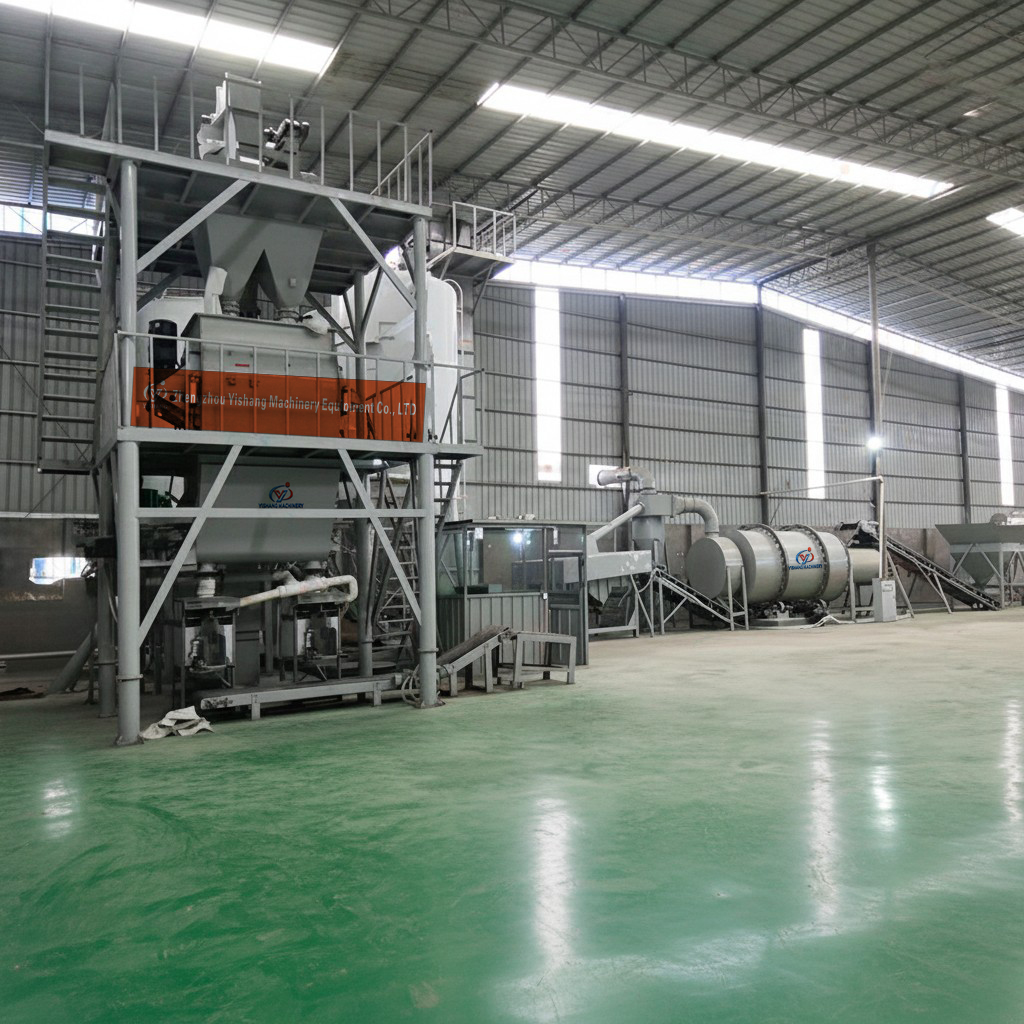

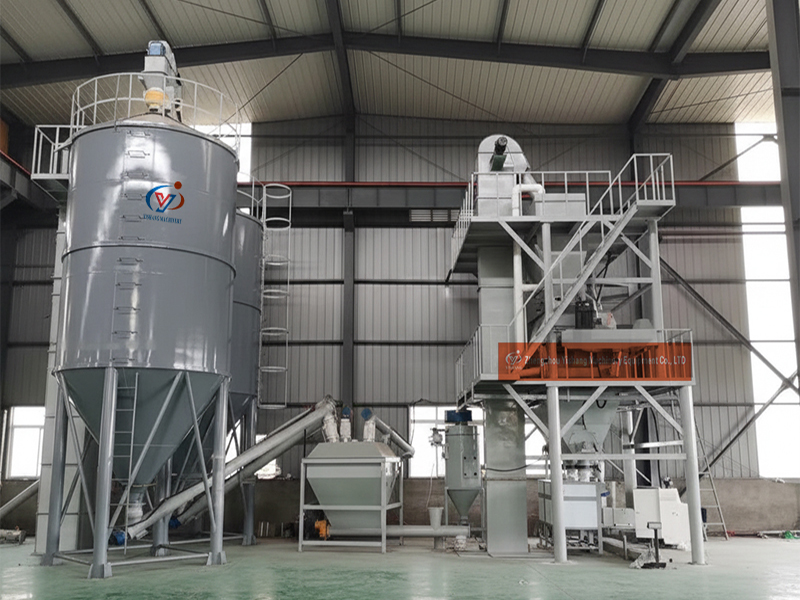

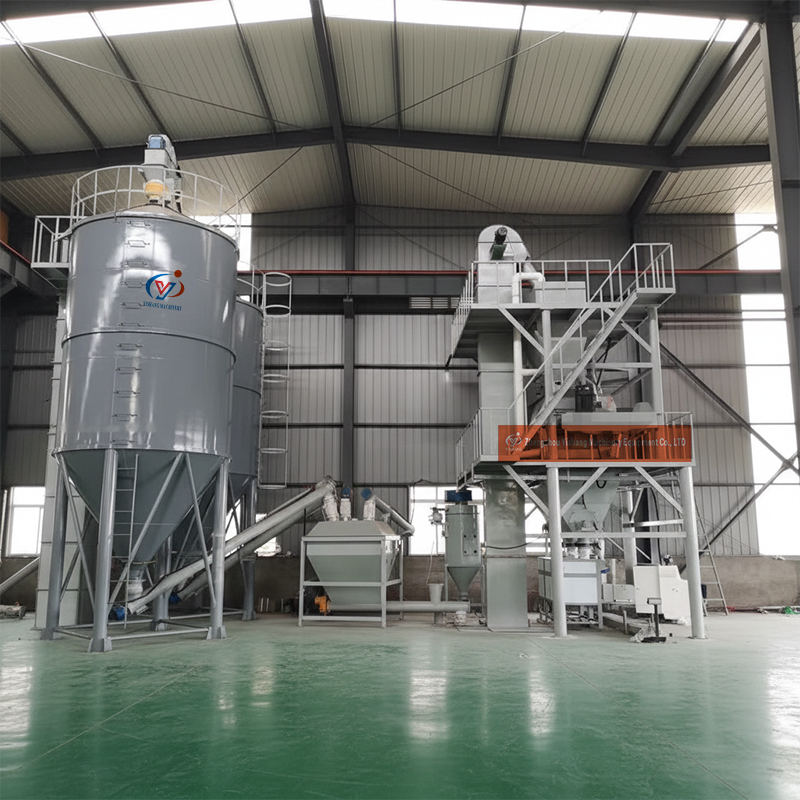

Automatic tower dry mortar production line

High-Capacity Automated Solution for Wall Putty and Dry Mortar Manufacturing

The construction finishing industry demands consistent quality—especially when it comes to wall putty powder for interior and exterior surface preparation. Zhengzhou Yishang Machinery introduces its Industrial Wall Putty Powder Making Machine, a fully automatic dry mortar production line specifically engineered for manufacturing high-quality wall putty, tile adhesives, plaster powders, and other specialized dry mortars -

This advanced system integrates automatic batching, high-efficiency mixing, pneumatic conveying, automatic packaging, and dust collection into a seamless, fully automated production workflow, enabling manufacturers to achieve superior product consistency with minimal manual intervention -

Why Choose Yishang Wall Putty Production Line?

1. Optimized for Wall Putty Manufacturing

Wall putty requires specific processing characteristics—fine particle distribution, smooth consistency, and excellent adhesion properties. Our production line is specifically configured to meet these requirements -

Application	Key Requirements	Yishang Solution
Interior Wall Putty	Fine texture, white color, easy sanding	Precision screening and mixing for ultra-fine powder
Exterior Wall Putty	Water resistance, crack resistance, weather durability	High-shear mixing with polymer additive dosing
Tile Adhesive	High bonding strength, slip resistance	Accurate cement and RDP powder proportioning
Plaster/Gypsum Powder	Smooth application, proper setting time	Gypsum-specific mixing with retarder dosing

2. Fully Automatic Production Workflow

From raw material intake to finished bagging, every stage is controlled by an intelligent PLC system:

Raw Material Storage – Cement, sand, fillers (calcium carbonate/talc), and additives stored in silos and bins
Automatic Batching – High-precision weighing system measures each material according to stored recipes; accuracy of ±1% for aggregates and ±0.5% for additives
Automatic Feeding – Screw conveyors and bucket elevators transfer materials to the mixer dust-free
High-Efficiency Mixing – Dual-shaft paddle mixer or ribbon mixer achieves uniform blend in 3–5 minutes
Pneumatic Discharge – Clean, complete discharge with no dead corners, minimal residual waste
Finished Product Storage – Temporary storage in finished product silo
Automatic Packaging – Valve bag packing machine (10–50kg/bag, ±0.2kg accuracy)
Dust Collection – Pulse jet dust collectors at all transfer points ensure a clean working environment

3. Advanced Mixing Technology

The core of our wall putty production line is the dual-shaft paddle mixer, featuring:

No dead corners – Special paddle design ensures all material circulates and mixes completely
High mixing homogeneity – Up to 99.9% uniformity
Efficient cycle time – 90–120 seconds per batch
Minimal residue – Pneumatic discharge leaves almost no material behind
Wear-resistant construction – Durable alloy paddles for extended service life

4. Precision Weighing System

Material Type	Weighing Accuracy	Key Features
Aggregates (Sand, Calcium Carbonate)	±1%	Frequency conversion feeding, auto-compensation
Cement / Gypsum / Fly Ash	±1%	Sensor feedback with real-time calibration
Additives (RDP, HPMC, Starch Ether)	±0.5%	Micro-dosing screw, high-precision load cells

5. Flexible Configuration Options

Based on your production scale and budget, we offer multiple configurations -

Configuration	Capacity	Automation Level	Best For
Simple Line	3–7 t/h	Manual batching, automatic packing	Small business, startup operations
Semi-Auto Line	8–10 t/h	Auto coarse batching, manual additives	Medium-scale production
Full Auto Line (Recommended)	10–15 t/h	Complete auto batching, mixing, packing	Industrial mass production -
Tower Type Line	15–30 t/h	Fully automated with silos	Large-scale, multi-product manufacturing -

Technical Specifications

Model	Capacity (t/h)	Mixer Type	Mixer Volume (L)	Total Power (kW)	Workshop Height
YS-WP-10	8–12	Ribbon / Paddle	2000	80–90	8–10m
YS-WP-15	12–18	Dual-shaft paddle	3000	90–110	10–14m
YS-WP-20	15–25	Dual-shaft paddle	4000	110–130	10–14m
YS-WP-30	25–35	Heavy-duty dual-shaft	6000	130–160	15–20m

Grain size tolerance: Up to 4.75mm
Mixing uniformity: ≥99%
Workers required: 2–4 persons

Main Components of the Production Line

Component	Description
Raw material silos	3–6 units for cement, sand, calcium carbonate, gypsum, additives
Bucket elevator	Dust-free material lifting (plate chain type for durability)
Screw conveyor	Precise additive feeding with double-pitch design to reduce compression
Weighing system	Aggregate scale, cement scale, additive scale (3 independent units)
Dual-shaft paddle mixer	Core mixing unit with wear-resistant blades, no dead corners -
Finished product silo	Temporary storage before packaging
Automatic packer	Valve bag filling, 10–50kg/bag adjustable, ±0.2kg accuracy
Pulse dust collector	Environmental protection throughout the line
PLC control panel	Full automation with touchscreen interface, recipe storage
Air compressor	For pneumatic valves and cleaning

End Products This Machine Produces

Product Category	Specific Products
Wall Putty	Interior wall putty, exterior wall putty, mirror putty, humidity-control putty
Tile Adhesives	Standard C1/C2 tile adhesive, flexible adhesive, large-format tile adhesive
Plaster Products	Gypsum plaster, cement plaster, finishing plaster
Masonry Mortars	Masonry mortar, plastering mortar, skim coat -
Specialty Mortars	Self-leveling compound, thermal insulation mortar, waterproof mortar, repair mortar
Jointing Products	Tile grout (colored), caulking agent, joint filler

Raw Materials Processed

Cement – Portland cement, white cement
Dried sand – 0.4–0.6mm (for tile adhesive), 0.6–1.2mm (for plaster)
Calcium Carbonate / Talc – For wall putty filler
Gypsum / Plaster of Paris
Fly ash / Limestone powder
Redispersible polymer powder (RDP)
Cellulose ether (HPMC/MHEC)
Starch ether
Pigments (for colored products)

Applications

Interior and exterior wall smoothing and finishing
Ceramic tile installation (floor & wall)
Wall leveling and surface preparation for painting/wallpaper
Building facade rendering
Floor underlayment and self-leveling
Joint filling between tiles

Why Zhengzhou Yishang Machinery?

Specialized Expertise – Years of experience in dry mortar equipment manufacturing with specific focus on wall putty and tile adhesive production lines
Turnkey Solutions – Complete plant design, equipment supply, installation, and operator training
Global Export Experience – CE-certified equipment serving customers worldwide
Formula Support – Basic production formulas provided for common mortar types
After-Sales Service – Engineers available overseas for installation and commissioning
Factory Direct – Competitive pricing with no middlemen

📞 Tel/WhatsApp/WeChat: +86 15137127837
🌐 Web: www.drymortarmachinery.com
✉ Email: [email protected]

Please inform us of your target capacity and product types—our engineering team will design the optimal solution for your production needs.
