Thermoplastic Road Marking Paint Production Line with Automatic Bag Palletizer and PLC Automatic Batching and Weighing System

From Silo to Stacked Pallet – Fully Automated, No Manual Handling

Labor is your biggest variable cost. Manual batching introduces human error. Manual palletizing causes injuries and inconsistent loads. This Thermoplastic Road Marking Paint Production Line solves both problems in one integrated system.

The PLC automatic batching and weighing system doses every ingredient to ±0.5% accuracy. The automatic bag palletizer stacks finished bags onto pallets at 15-20 bags per minute. From raw material to shipping-ready pallet, the line runs with only 2-3 operators per shift.

What Makes This Line Different

PLC Automatic Batching and Weighing System
Every material – resin, TiO₂, chrome yellow, glass beads, calcium carbonate – is weighed by high-precision load cells and controlled by the PLC. Accuracy: ±0.5% for pigments and additives, ±1% for fillers. The system stores multiple recipes. Switch between white and yellow paint with a single touch on the HMI screen.

Automatic Bag Palletizer
A 6-axis robotic arm picks filled 25kg bags from the bagging station and stacks them onto pallets in a programmed pattern. Speed: 15-20 bags per minute. Payload: up to 50kg. Stack height: up to 1800mm. The palletizer eliminates manual lifting, reduces back injuries, and delivers stable, uniform pallets that ship safely.

Twin-Auto Bagging System
Two independent packing heads fill and seal bags at 30-40 bags per minute. When one head needs maintenance or a new bag roll, the other keeps running. No production stop. Accuracy: ±0.2kg per 25kg bag.

The Complete Production Flow

Raw materials enter from silos. The PLC batching system weighs each component to the recipe. The heating mixer blends at 150-220°C. The cooling conveyor solidifies the melt. Two-stage crushing delivers 0-4mm powder. The twin-auto packer fills 25kg bags. The robot palletizer stacks them for shipping.

Every step is monitored on the HMI touchscreen. Temperature, weight, speed, and fault alerts are visible in real time. Production data is logged for quality traceability.

Proven Performance

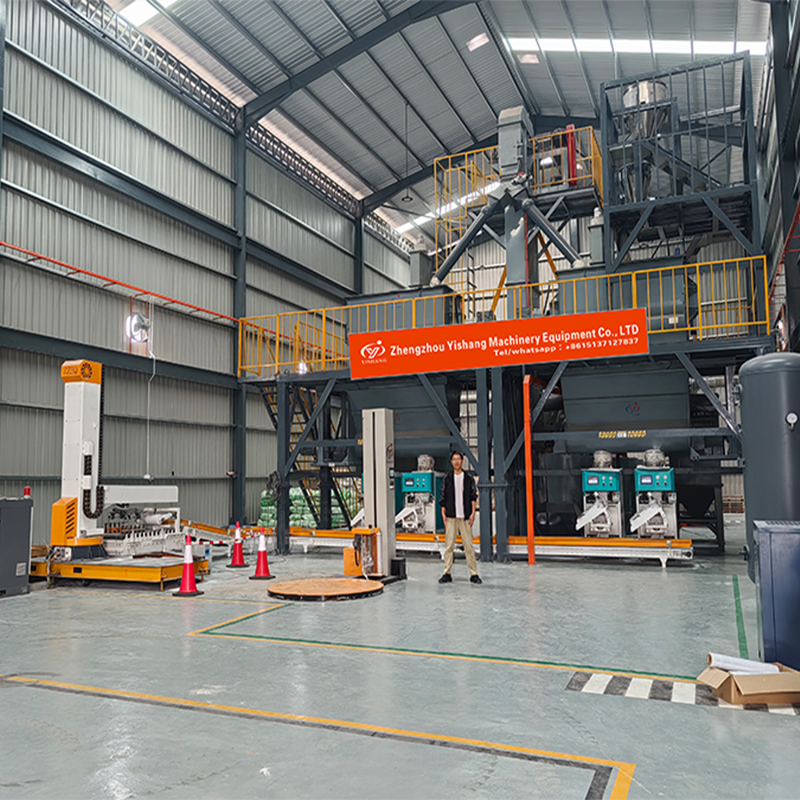

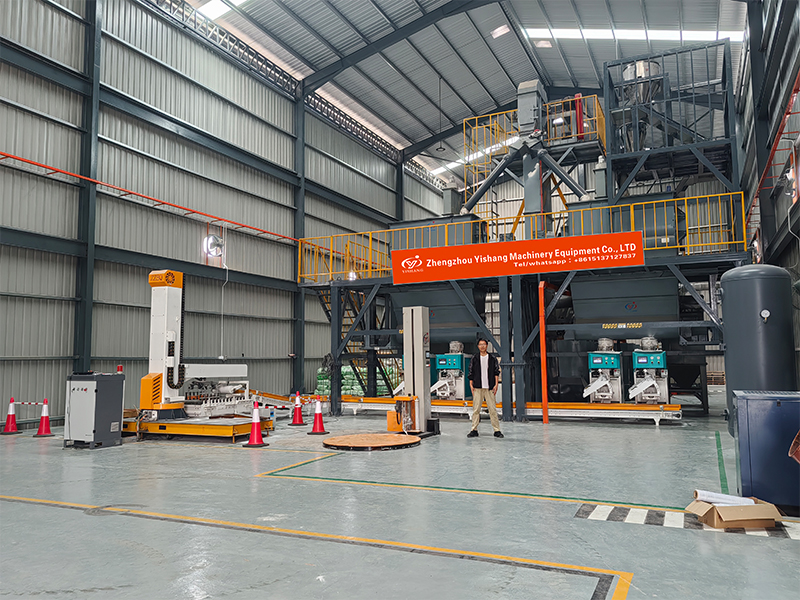

This configuration has been installed and commissioned in Selangor, Malaysia. The customer reported labor reduction from 8-10 workers per shift to just 2-3. Packaging speed increased from 10-15 bags per minute to 30-40 bags per minute. Daily output rose from 8-10 tons to 20-25 tons on an 8-hour shift.-3

The line meets BS EN 1871, BS EN 1436, and AASHTO M249 standards. White paint luminance: ≥75. Yellow paint luminance: ≥45. Skid resistance: ≥50 BPN.

Key Features

• PLC automatic batching – ±0.5% accuracy, recipe storage, one-touch color change

• Automatic bag palletizer – 6-axis robot, 15-20 bags/min, eliminates manual lifting

• Twin-auto bagging system – 30-40 bags/min, continuous operation during bag changes

• 2-3 operators per shift – from raw material to finished pallet

• BS EN 1436 compliant – consistent luminance and skid resistance every batch

• Quick color changeover – white to yellow in under 30 minutes

• Pulse dust collection – clean working environment

Why Yishang?

Yishang Machinery has supplied thermoplastic road marking paint production lines to customers in Malaysia, Saudi Arabia, and other markets. We provide complete turnkey delivery: plant layout design, all equipment, on-site installation, operator training, and basic formulations. One supplier, one warranty, one point of contact.

📞 Tel/WhatsApp/WeChat: +86 15137127837
🌐 Web: www.drymortarmachinery.com
✉ Email: [email protected]

Tell us your target capacity. We will design your Thermoplastic Road Marking Paint Production Line with automatic palletizing and PLC batching.
